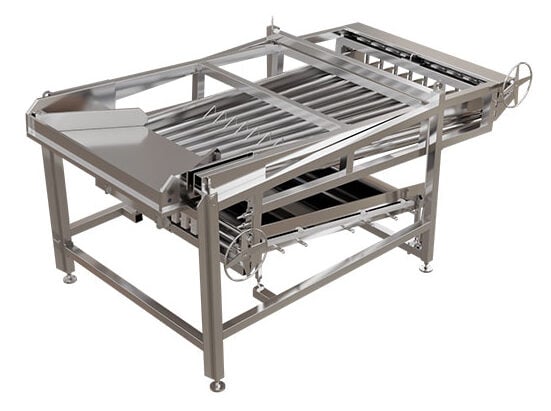

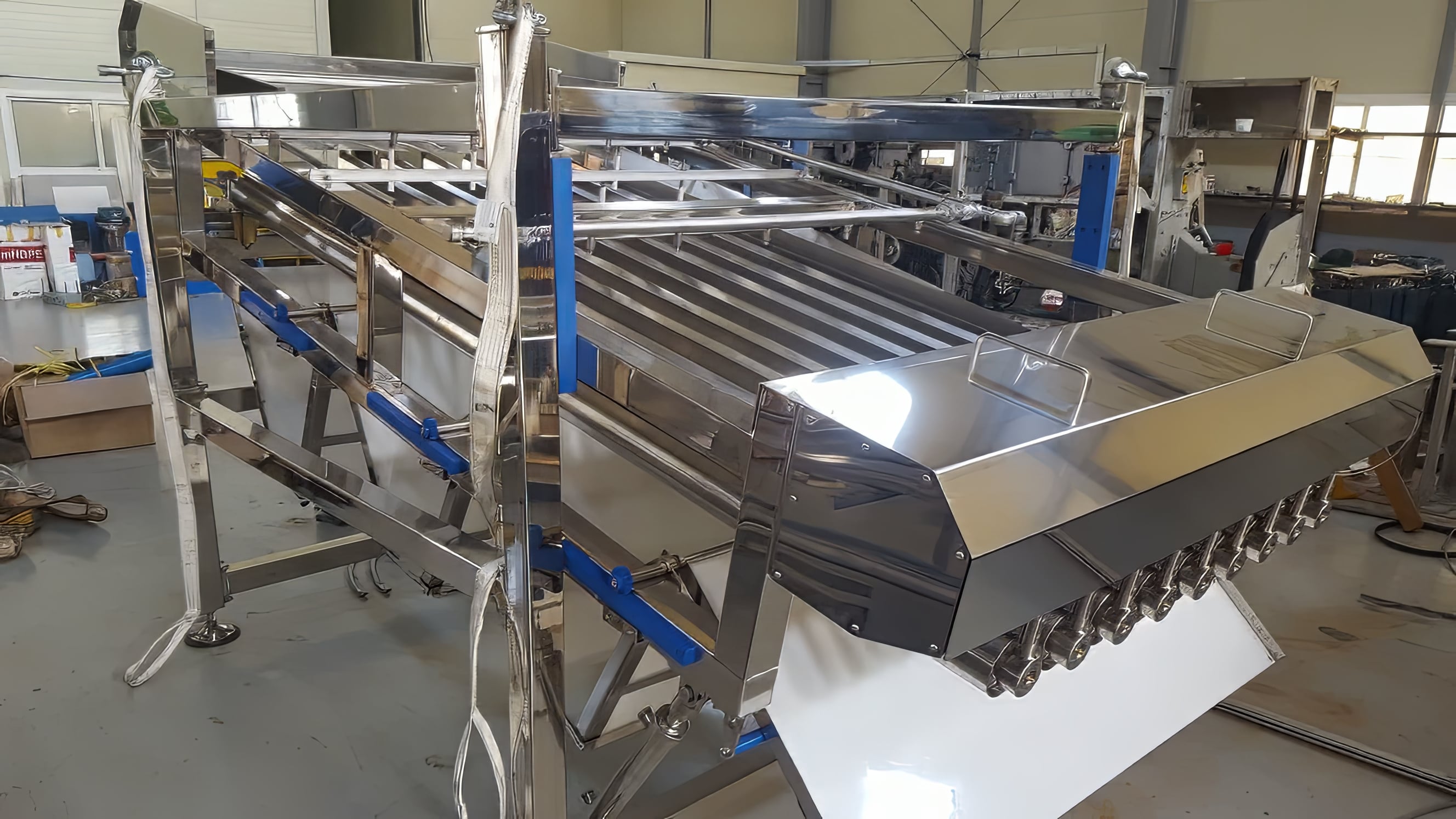

RM 421: GRADER
FISH PROCESSING
SORTING MACHINE
Designed for size sorting of the following fish species: cod fish (pollock, hake), pelagic fish (herring, mackerel)
Technical data
Throughput rate
4 sorting lanes (cod / pelagic)
up to 18,000 kg/h/ up to 12,000 kg/h
6 sorting lanes (cod) (cod / pelagic)
up to 27,000 kg/h/ up to 18,000 kg/h
8 sorting lanes (cod) (cod / pelagic)
up to 36,000 kg/h/ up to 24,000 kg/h
Power consumption
7,5 kW
Connection to power supply:
380V 3F 50 Hz
Industrial water
Consumption
20 l/min
Pressure
3-6 bar
Connection
Ø 20mm
Dimensions of the machine
Length 3985 mm
Width 1644 mm
4 sorting lanes – 1270 mm
6 sorting lanes – 1670 mm
8 sorting lanes – 2070 mm
Height
1915 mm
Weight
950 kg
4 sorting lanes – 1020 kg
6 sorting lanes – 1400 kg
8 sorting lanes – 1800 kg
4 sorting lanes – 1020 kg
6 sorting lanes – 1400 kg
8 sorting lanes – 1800 kg
