RM 571
WEIGHTING & PACKING
FREIGHT ELEVATOR

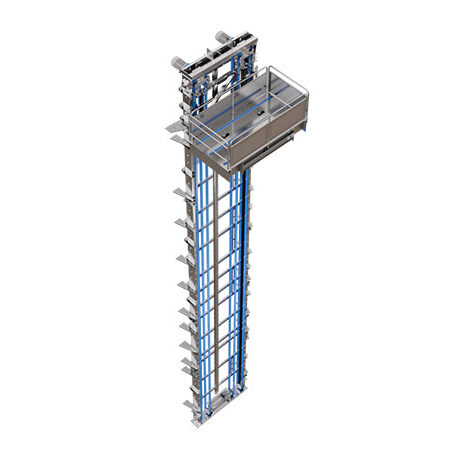

Designed for transporting goods between floors. If receiving conveyors are installed on floors, loading and unloading of cargo on a pallet can take place automatically under the control of the operator (optional) **
Technical data
OEM
RM Pusan Group
Lifting capacity *
2500 kg
Frame material
Stainless steel
Power consumption *
13,5 kW
Connection to power supply
380V 3phase 50/60 Hz
Speed
9 m/min
Dimensions of the machine
Length *
2590 mm
Width *
1872 mm
Height *
14340 mm
Weight *
4 t
* platform dimensions, lifting height and lifting capacity of the elevator can be changed at the customer’s request.
** lift is not intended for transporting people.
